Roll-In Saw TF1420 220V/440V 3PH 14-Inch by 20-Inch American Tilt Frame Band Saw

The semi-automatic TF1420 will provide decades of efficiency and durability at a price
that is less expensive than comparable saws in its class.

Like our EF1459 model, the TF1420 is actually a horizontal band saw on a vertical frame. This all- purpose saw handles all metals, plastics, and woods in a wide variety of cuts.

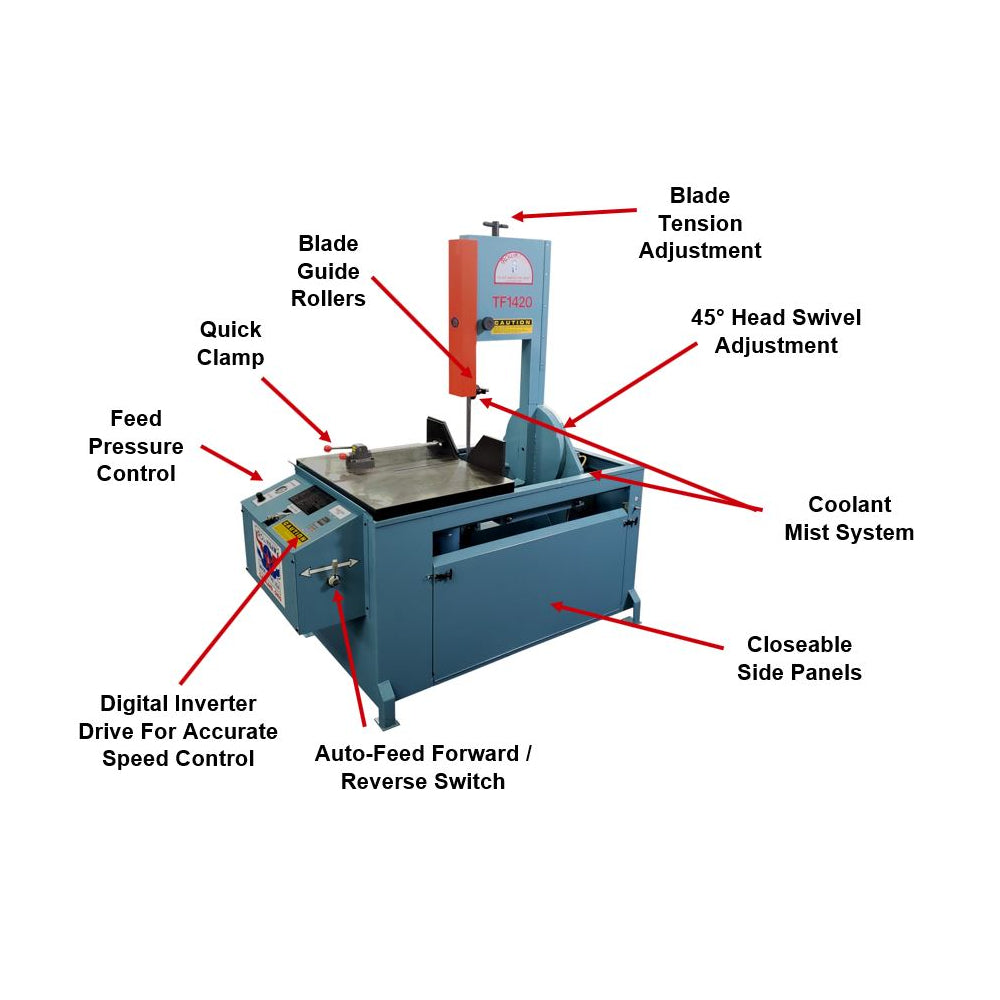

Quickly tilt the frame to make 45° miter or beveled cuts; use control panel to quickly adjust
feed rate, pressure, and blade speed; then pull the lever to start the air over hydraulic feed and allow your saw to cut your material for you.

Feed System Adjustable Air Over Hydraulic Cylinder For Feed Control From0 To 175 lbs
Blade Travel 14" Into Work
Cutting Capacity at 90° Round: 14" Rectangle: 14" x 20"
Miter Cut Angle Range 0° - 45°
Bevel Cut Angle Range 0° - 45°
Capacity Under Guides 20" Under guides @ 90°
Throat Square Blade: 14" 45° Blade: 13"
Blade Size (Ships With Saw) 1" Width x 12' 11" Length .035 Thick (bi-metal)
Blade Size (Accepted Widths) 1/4”, 3/8”, 1/2”, 5/8”, 3/4”, and 1"
Blade Speeds 70 - 400 sfpm (digital speed control)
Table Precision Ground Cast Iron Table: 32 1/4" x 26 1/4"
Table Height 37" From Floor (No Casters)
Motor 2HP 220/440V three-phase (TEFC)

Saw Dimensions 60" Width x 80" Height x 66" Length
Shipping Dimensions 60" Width x 90" Height x 77" Length
Shipping Weight 1,400 lbs. F.O.B. Cleveland, Ohio
