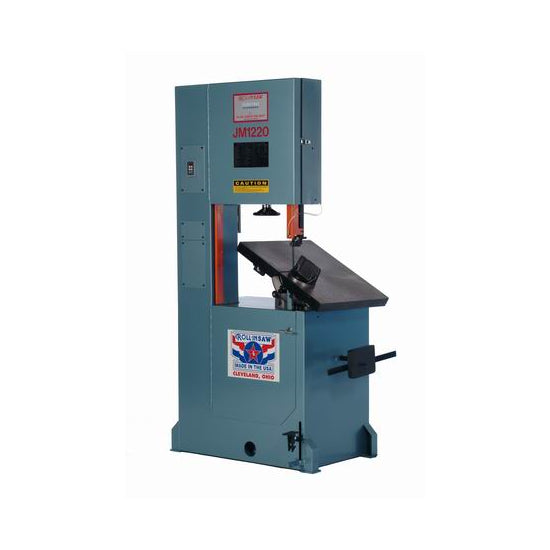

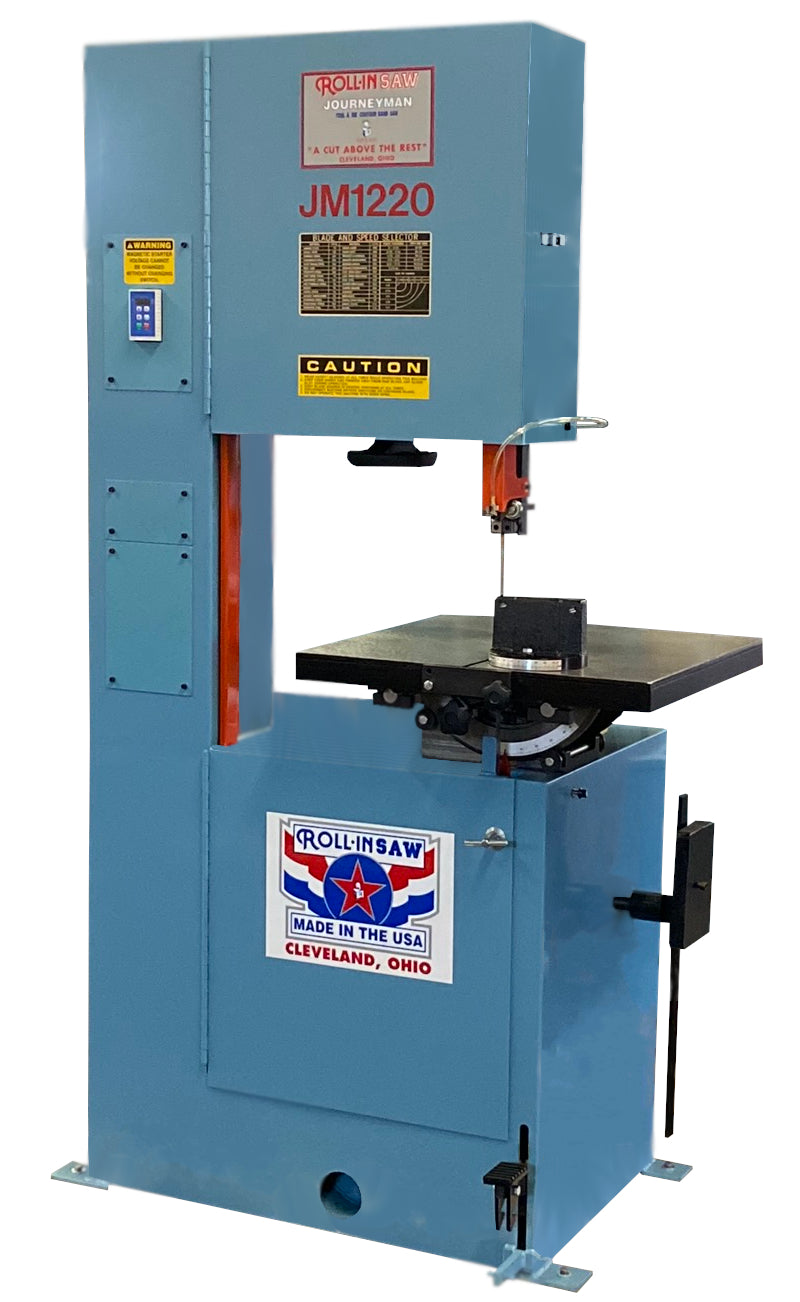

Roll-In Saw JM1220 220V/440V 3PH 12-Inch by 20-Inch American Tilt Table Journeyman Vertical Band Saw

From the digital speed control to the calibrated gravity fed tilt-table, the "Journeyman 1220” sets the standard for versatility.

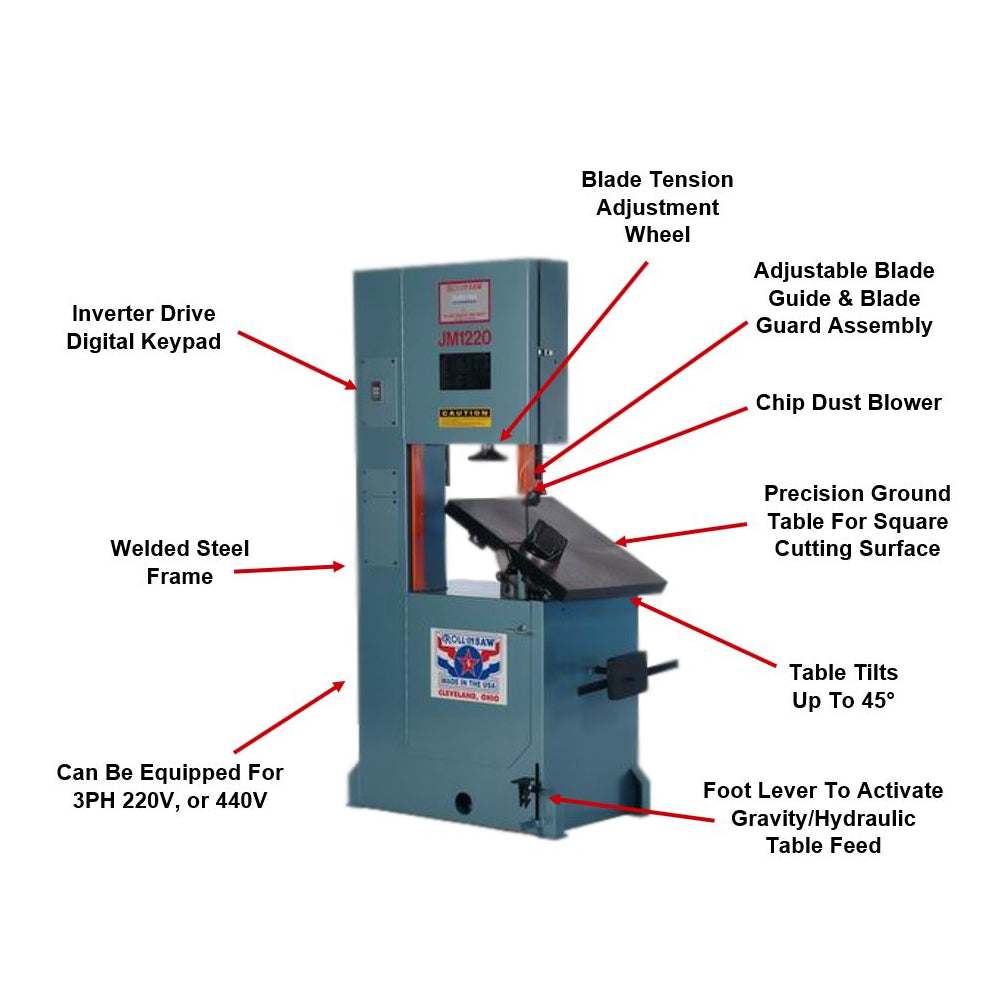

The saw comes standard with variable speed control, tilt-table, "Adjusto-Blok®" blade guides, blade guard, chip-clearing funnel, chip blower, and angle plate

The saw can be used as a traditional vertical tool room band saw; additionally, with a table to tilt up to 45° and auto-feed into the blade, this saw has all of the versatility to easily make the simplest or most precise cuts—making it the perfect machine for tool & die, R&D, and model shops.

The multifaceted Journeyman Tilt Table allows users to easily make contour, profile, rip, and complex angle cuts

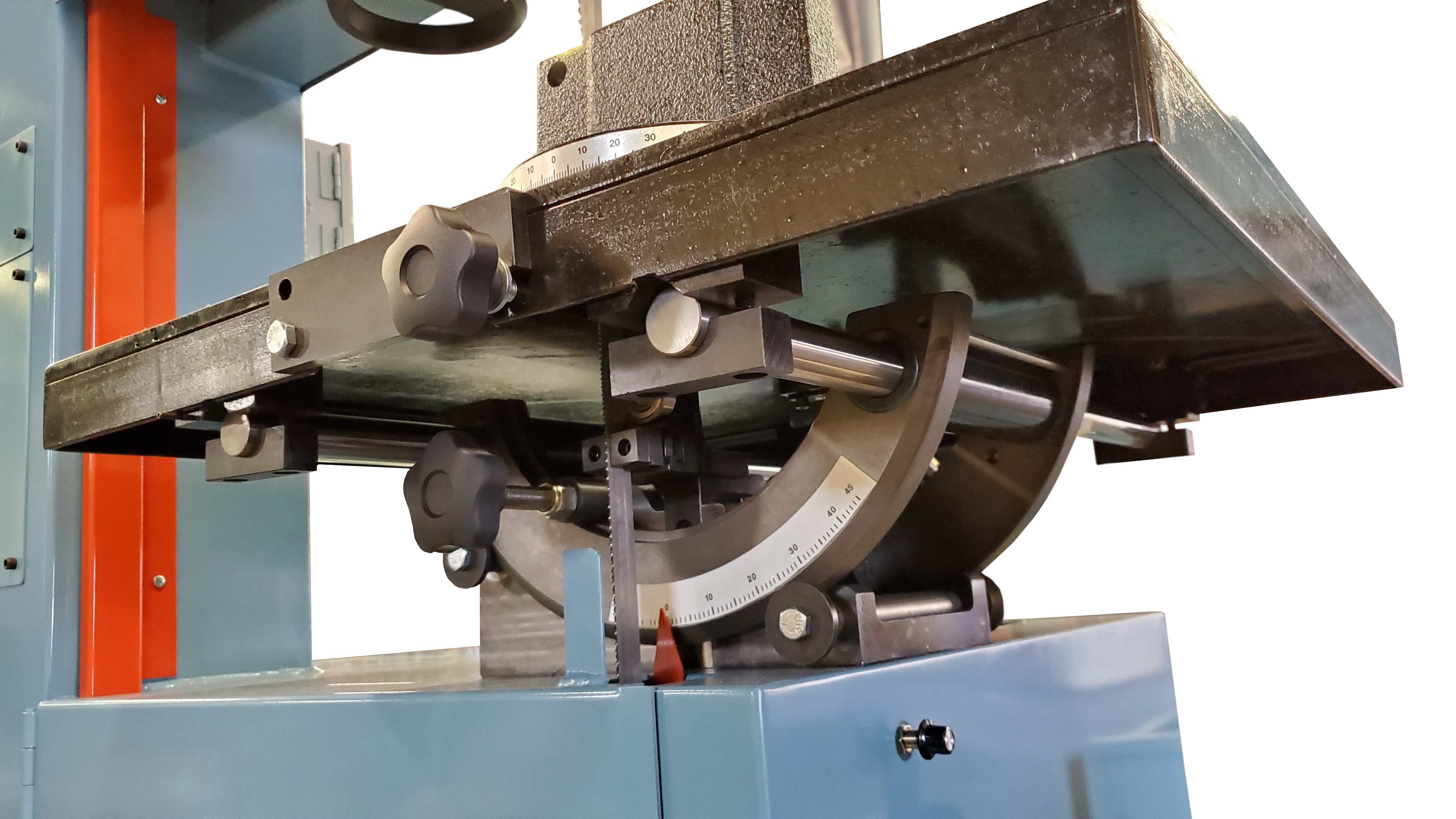

Quickly make specialty cuts with the easily adjustable table that tilts up to 45°
Improves efficiency through a dual-sourced weighted/hydraulic table feed
Fast & accurate all-purpose saw, with the benefits of both a vertical and horizontal saw

Feed System Gravity Feed
Blade Travel 11” (Table Travels, Not The Blade)
Cutting Capacity at 90° Round: 12" Rectangle: 20" x 12"
Miter Cut Angle Range 0° - 45°
Bevel Cut Angle Range 0° - 45°
Capacity Under Guides 12”
Throat 20”
Blade Size (Ships With Saw) 3/4” Width x 8/12T x 12' 10” Length .035 thick (bi-metal)
Blade Size (Accepted Widths) 1/4”, 3/8”, 1/2”, 5/8” and 3/4”
Blade Speeds 70 - 500 fpm
Table Precision Ground Steel Table: 24 x 24 1⁄2”
Table Height 40" From Floor
Motor 2 HP 220/440V, 60-cycle three-phase

Saw Dimensions 46” Width x 80” Height x 30” Length
Shipping Dimensions 48” Width x 86” Height x 38” Length
Shipping Weight 1,000 lbs. F.O.B Cleveland, Ohio
