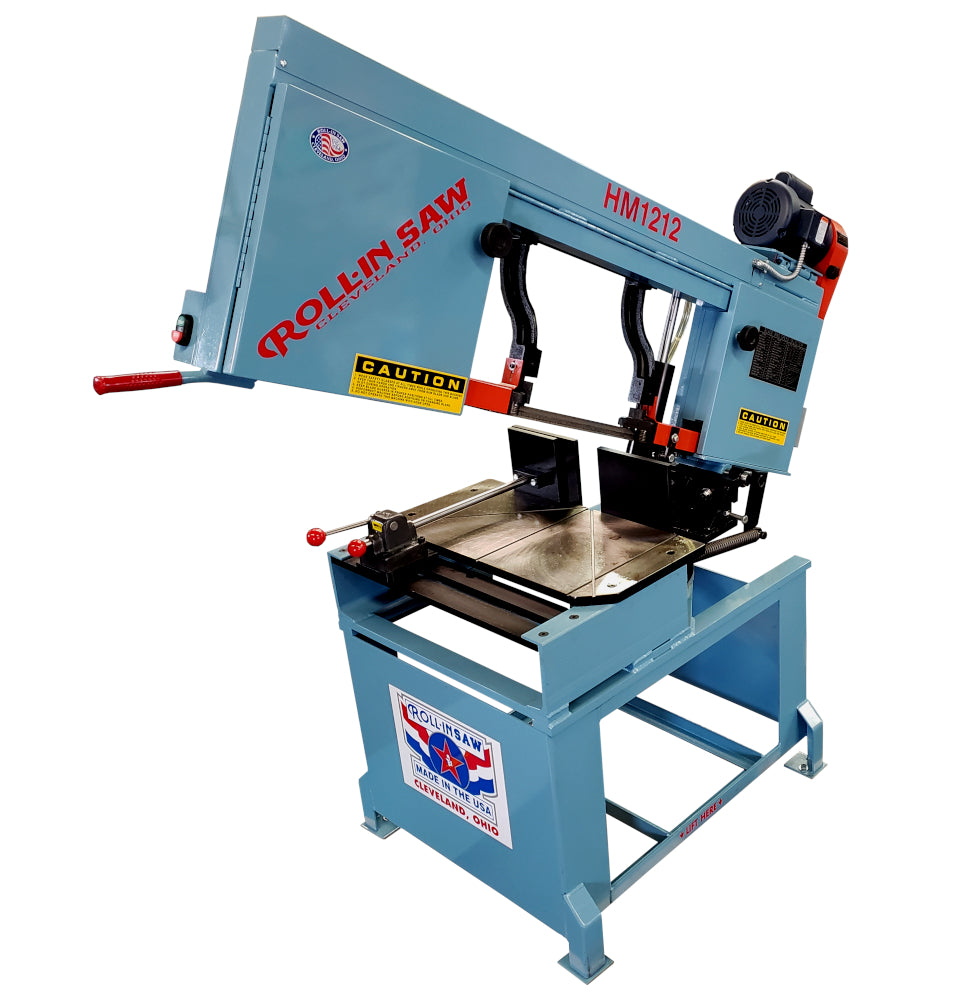

Roll-In Saw HM1212 & HM1212 110V/220V 1PH 12-Inch by 10-Inch American Horizontal 60 Degree Mitering Band Saw

The HW1212 & HM1212 is a heavy-duty horizontal saw built to provide decades of precise cutting. This reliable half ton saw features a hydraulic feed system for controlled feed rate and a frame that quickly swivels 60° in either direction for accurate cutting for up to 12" material. With a quick clamp that can be moved to either side of the 13" x 26.5" table, material can be fed from either direction, allowing more versatility.  The built-in coolant system on the HW1212 version has side splash panels, an 8-gallon coolant reservoir, and 3.5 gpm pump. This HW1212 built-in coolant system provides you a cleaner system that provides extended life of the blade.

Feed System Hydraulic cylinder for controlled feeds
Blade Travel 12"
Cutting Capacity at 90° Round: 12" - Rectangle: 12” x 10” - Square: 10"
Cutting Capacity at 45° Round: 9" Square: 9"
Cutting Capacity at 60° Round: 6" Square: 6"
Miter Cut Angle Range 0° - 60° (Saw Head Swivels 60° In Both Directions)
Bevel Cut Angle Range N/A
Capacity Under Guides 12”
Blade Size (Ships With Saw) 1" Width x 11' 8" Length x .035 Thick (bi-metal)
Blade Size (Accepted Widths) 1"
Blade Speeds 70/140/270 sfpm
Table Precision Ground Steel Table: 13” x 26.5”
Table Height 30" From Floor (No Casters)
Motor 1 HP, 110/220 single-phase

Saw Dimensions 26" Width x 50-1/2" Height x 73" Length
Shipping Dimensions 41" Width x 56.5" Height x 96" Length
Shipping Weight 1,000 lbs. F.O.B. Cleveland, Ohio

HM1212 & HW1212
Fast accurate cut on materials up to 12" thick

Saw easily swivels up to 60° in either direction, allowing for precise angled cuts
The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts.

Built-in coolant system enables faster cuts and extends the life of the saw blades (HW1212)

Features:

• 1 HP Motor
• Adjustable Guide Arms & Guide Rollers
• Reduction Gearbox

• Auto-Feed Controls
• Quick Clamp
• Blade Speed Adjustment

• 60° Swivel Adjustment
• Hydraulic Cylinder
• Coolant Reservoir & Pump (HW1212)
• Coolant Catch Tray (HW1212)
