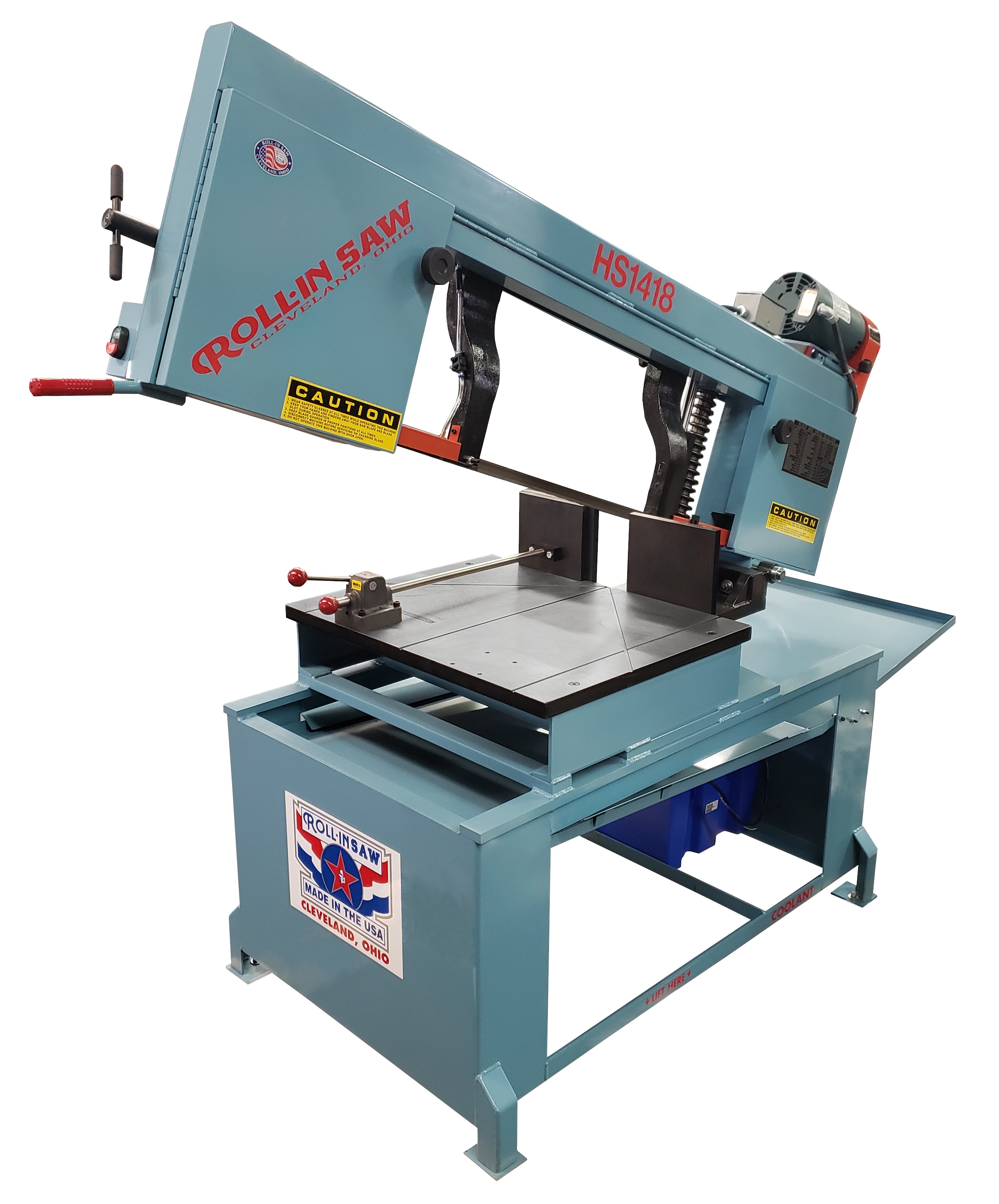

Our largest horizontal saw is built to complete your biggest jobs. With a cutting capacity of 14" at 90°, and 12" capacity at 45°, the HS1418 will provide decades of true cutting on both large and small jobs. This reliable saw features a hydraulic feed system for a controlled feed rate and a frame that quickly swivels 60° in either direction for precise cutting for up to 12"
material.

The large 24" x 30" cutting table, with a quick clamp that can be moved to either side of the
table, provides a versatile workspace for cutting all material.

The hydraulic feed system and built-in coolant system provides clean smooth cuts. The built-in coolant system features side splash panels, an 8-gallon coolant reservoir, and 3.5 gpm pump.

Feed System Hydraulic cylinder for controlled feeds
Blade Travel 14"
Cutting Capacity at 90° Round: 14" Square: 14"
Cutting Capacity at 45° Round: 12" Square: 12"
Cutting Capacity at 60° Round: 8" Square: 8"
Miter Cut Angle Range 0° - 60° (Saw Head Swivels 60° In Both Directions)
Bevel Cut Angle Range N/A
Capacity Under Guides 14”
Blade Size (Ships With Saw) 1" Width x 11' 8" Length x .035 Thick (bi-metal)
Blade Size (Accepted Widths) 1"
Blade Speeds 70/140/270 sfpm
Table Precision Ground Steel Table: 24” x 30”
Table Height 31" From Floor (No Casters)
Motor 2 HP, 220/440V three-phase

Saw Dimensions 34 1⁄2" Width x 66" Height x 90" Length
Shipping Dimensions 41" Width x 66" Height x 96" Length
Shipping Weight 1,600 lbs. F.O.B. Cleveland, Ohio

       HS1418

Fast accurate cut on up to 14" thick material

Saw easily swivels up to 60° in either direction, allowing for precise angled cuts

The weighted/hydraulic feed coupled with the automatic stop switch allows for large production and unsupervised cuts

Built-in coolant system enables faster cuts and extends the life of the saw blades

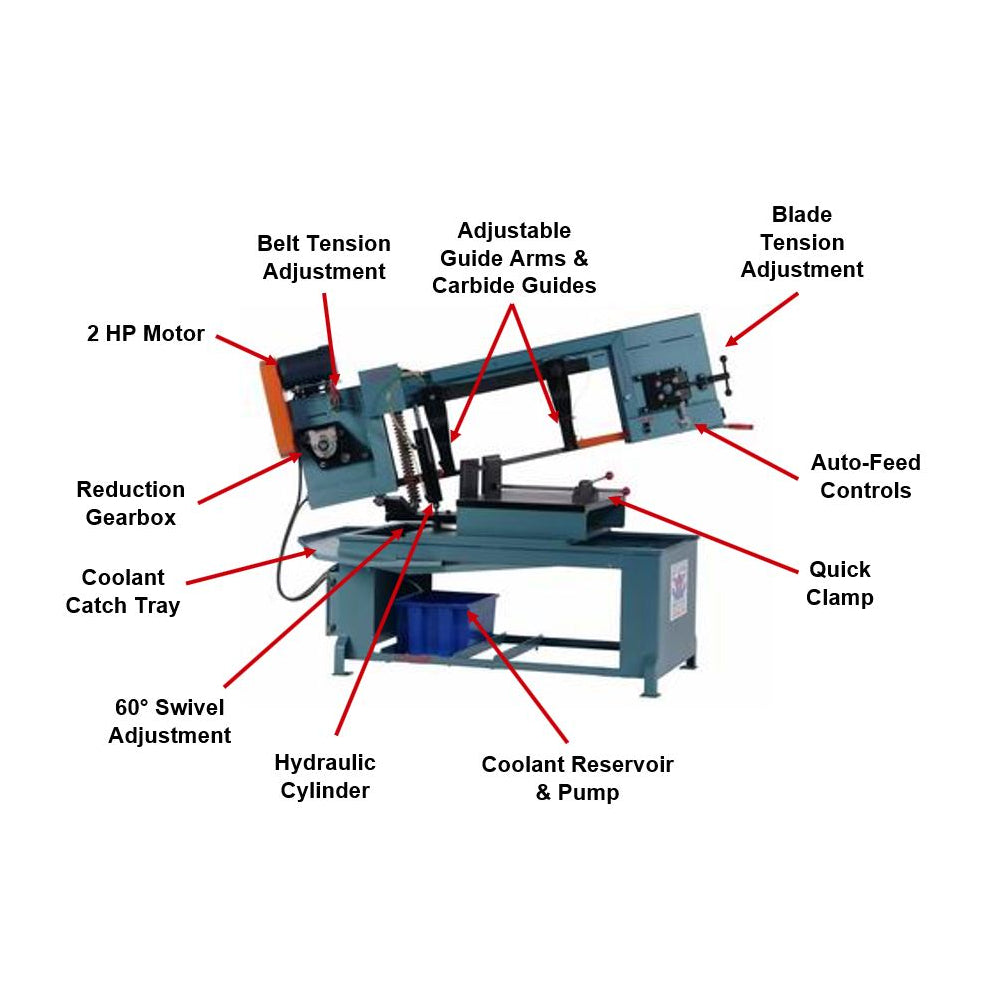

Features:

• 2 HP Motor
• Reduction Gearbox
• Coolant Reservoir & Pump
• Quick Clamp Auto-Feed Controls
• Hydraulic Cylinder
• Belt Tension Adjustment
• Adjustable Guide Arms & Carbide Guides
• Blade Tension Adjustment
• 60° Swivel Adjustment
• Coolant Catch Tray
