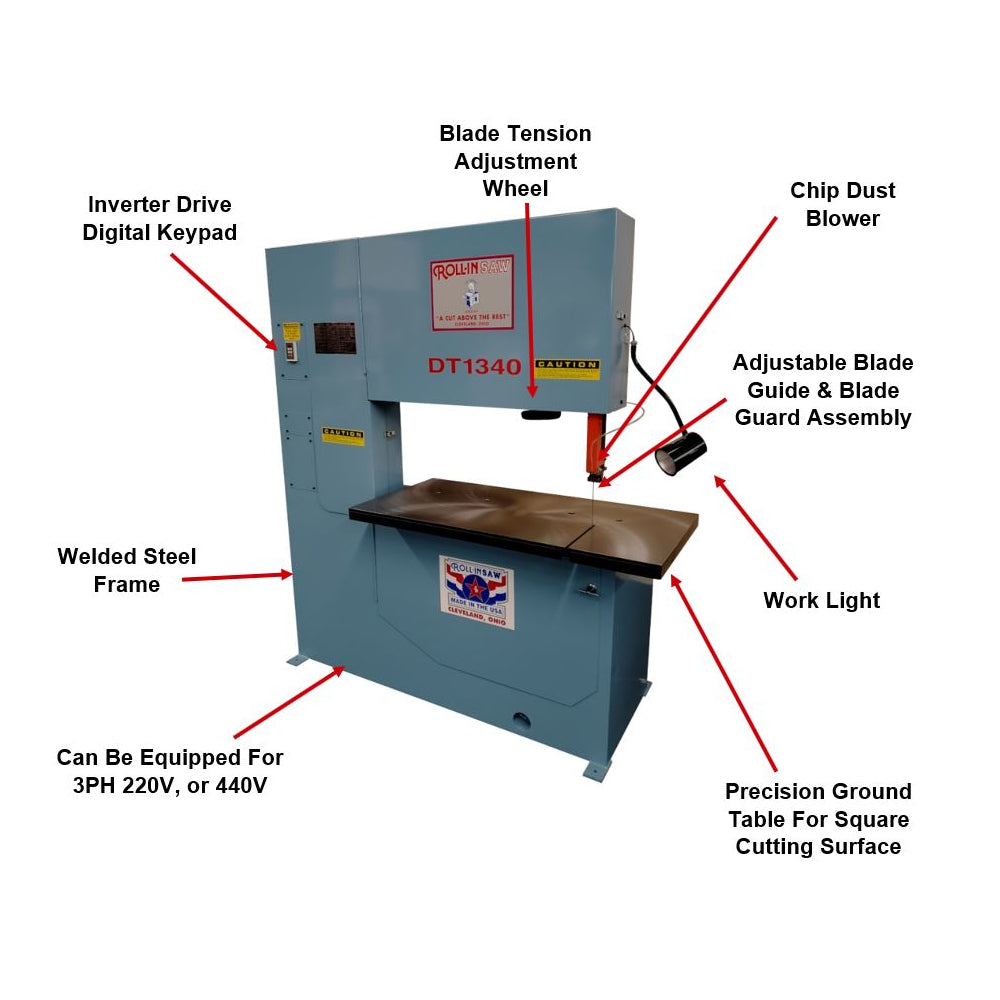

Roll-In Saw DT1340 220V/440V 3PH 13-Inch by 40-Inch American Deep Throat Journeyman Vertical Band Saw

“The Deep Throat Journeyman” provides the strength and agility to make straight or detailed
cuts on 13" material. This saw is designed to provide you decades of service.

This saw is perfect for any tool room, model shop, or manufacturing that requires complex
cutting.

Extend the life of the saw blade by utilizing the chip blower; adjusting the blade speed with the inverter drive digital keypad; or by using the optional saw blade welder, grinder, & shear.

Accurately control blade speed from 70-500 feet-per-minute with the on-board digital inverter drive

Adjusto-Blok® guides for 1/4" to 3/4" blade widths

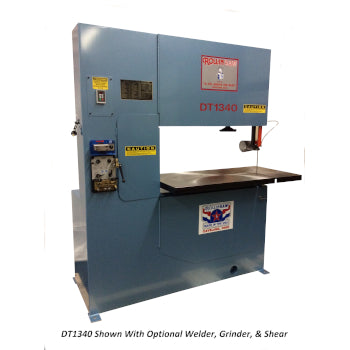

Optional saw blade welder, grinder, and shear for longer saw blade life.

Cutting Capacity at 90° Round: 13" Rectangle: 40" x 13"
Miter Cut Angle Range 0° - 45° **
Bevel Cut Angle Range N/A
Capacity Under Guides 13”
Throat 40”
Blade Size (Ships With Saw) 3/4” Width x 8/12T x 12' 10” Length .035 thick (bi-metal)
Blade Size (Accepted Widths) 1/4”, 3/8”, 1/2”, 5/8” and 3/4”
Blade Speeds 70 - 500 fpm
Table Precision Ground Steel Table: 24” x 54 1⁄4”
Table Height 39" From Floor
Motor 2 HP 220/440V, 60-cycle three-phase

Saw Dimensions 46” Width x 80” Height x 30” Length
Shipping Dimensions 48” Width x 86” Height x 38” Length
Shipping Weight 750 lbs. F.O.B Cleveland, Ohio
