MAKSIWA RBB.4G Edge Trimmer
Sale price$2,399.00
Choose options
MAKSIWA RBB.4G Edge Trimmer
Sale price$2,399.00

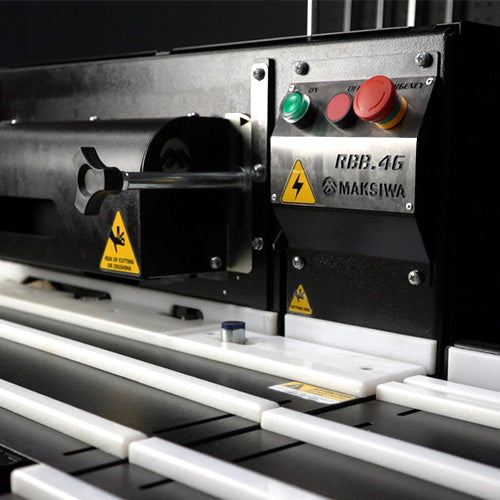

MAKSIWA RBB.4G EDGE TRIMMER
The RBB.4G has 4 groups that perform trimming, scraping and polishing of edge bands applied to MDF sheets and similar, providing a perfect finish to your projects. Performs these operations on edge bands with a thickness of up to 1 mm, and sheets with a height of up to 70 mm. It has an advance that will help and guarantee greater ergonomics during operations. Its adjustment and operation is very simple:
First, you choose the plate you want to finish. After that, adjust the machine according to the height of the plate. Now, all you have to do is turn on the machine and carry out the deburring flush with the piece.
Perfect finishing in your projects.
RBB.4G + CBC.MR
Perfect for use with the CBC.MR.

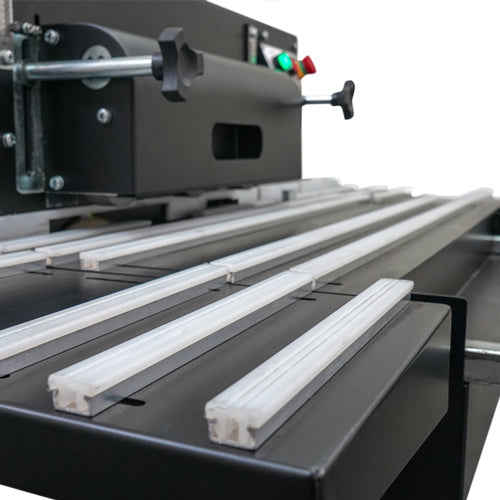

HANDLE LARGE PANELS
DUST COLLECTION SYSTEM
Built-in dust collector port.

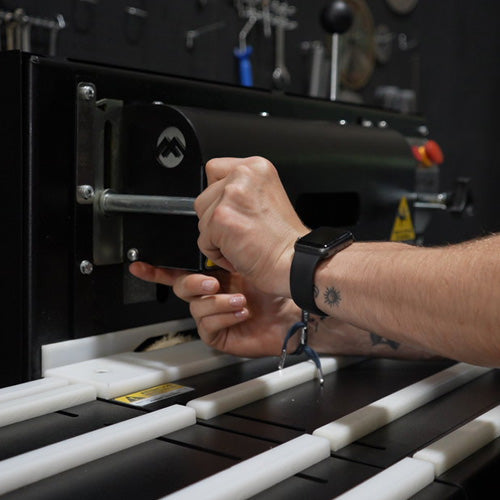

HEIGHT ADJUSTMENT
.
Technical Information |
RBB.4G |
|---|---|
| Motor | 110 V 6 A 2100W 60Hz |
| Max Panel Height | 2- 3/4" | 70mm |
| Max Tape Thickness | 1mm |
| Minimum/Max Workpiece Length | 6" | 160mm - 138" | 3500mm |
| Minimum Workpiece Width | 3" | 75mm |
| Work Dimensions | 51-3/16" X 27-1/2" | 1300x700MM |
| Feed | Automatic |
| Feed speed | 56 ft/min | 17m/min |
| Scrapper | 2 Sided Straight |
| Router Bit | 2 Flute Straight |
| Weight | 199 Lbs |
