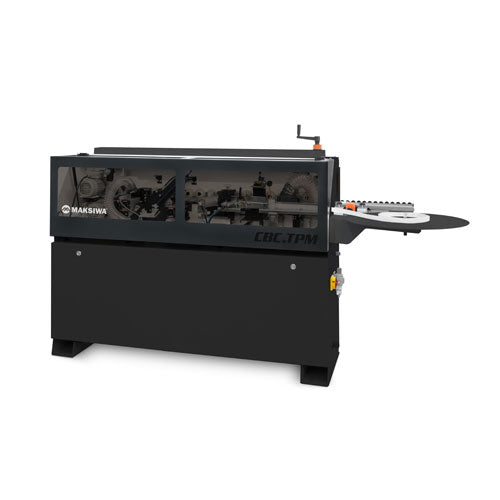

MAKSIWA CBC.TPM – Edgebander Pre-Milling

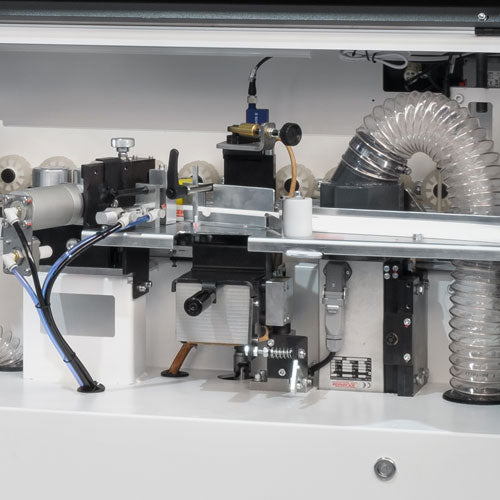

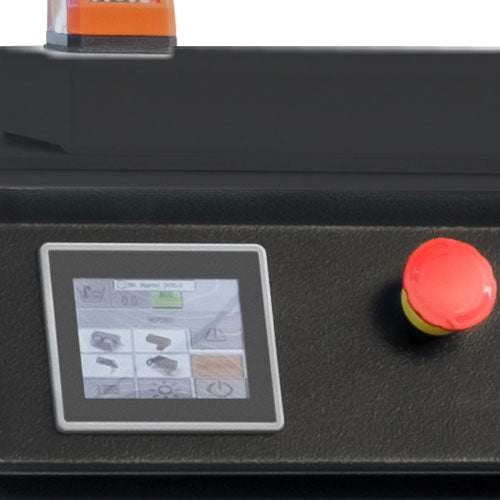

The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with touchscreen panel, this machine ensures ease of operation and delivers a flawless finish.

Pre-milling in a small footprint

• Edge Tape: 0.4-2 mm
• Panel Thickness: 10-45mm
• 1 Phase 220V 60Hz
• Glue Scraper Unit
• Buffing Unit
• End Trimming HF Motor

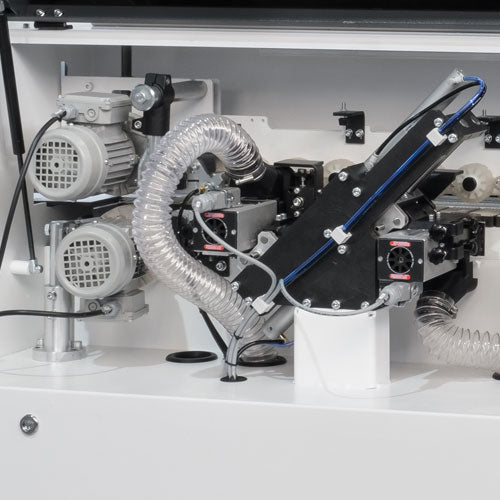

• Pre-milling Unit 2 HF Motors

• Glue Pot Capacity 0.5kg | 1lbs Teflon Coated
• Automatic feeding Speed 21 ft/min
• Net Weight 1911 Lbs | 540 kgs
• Compact Design
• Melamine/PVC/ABS/PP





CBC.TPM	SAE	METRIC
Automatic Feeding speed	21 ft/min	6.5 m/min
Panel thickness Min/Max	13/32” - 1 3/4”	10 - 45 mm
Max Pre-milling Height	1”	30 mm
Edgebanding thickness	0.0157" - 0.07"	0.4-2mm
Glue Pot Capacity	1lbs	0.5 kg
Max Edgebanding Height	1"	30 mm
Minimum panel width	1 3/4"	45 mm
Minimum panel length	4 3/4"	120 mm
Extendable Panel Support Rail Length	83 1/2"	2122 mm
Extension table Max Width	10"	257 mm
Size of Dust Collector Ports	6"	150mm
Minimum Dust Collection Requirements	1236 CFM	2100 m3/h
Air Pressure Requirement	14 SCFM @ 87PSI	0.7 Mpa

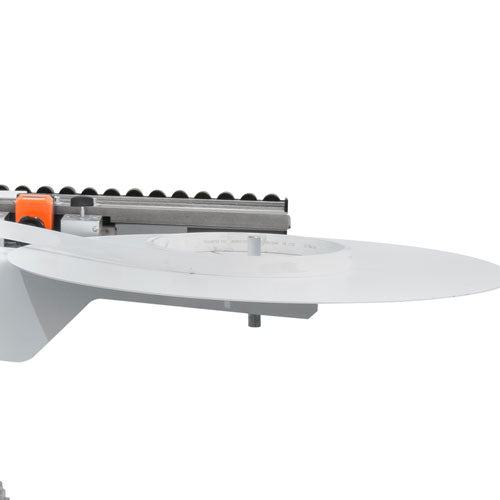

Edgebanding coil Support Diameter	59"	1498 mm
Recommended Glue Temperature Range	356°F - 410°F	180°C - 210°C
Max. machine dimensions (LxWxH)	93 1/2”x 40 13/16”x 53”	2376 x 1028 x 1347 mm
Net weight	1191 LBS	540 KGS
Shipping dimensions (LxWxH)	91” x 30” x 57”	2320 x 760 x 1448 mm
Glue Type	Granulated Hot-Melt EVA	Granulated Hot-Melt EVA
Electrical Information	1 Phase 220V 30 Amps 60Hz	1 Phase 220V 30 Amps 60Hz
Sound Rating	80 dB	80 dB







Motor/Electrical	Specs
Electrical Requirement	1 Phase 220V 30 Amps 60 Hz
Conveyer Motor	60 Hz 1390 RPM .66 kw
Top/Bottom Trimmer HFM	200 Hz 12,000 RPM .27kw
End Trimmer Motor	200 Hz 12,000 RPM .27kw
Front/Rear Pre-Milling HFM	150 Hz 9000 RPM .75/.25Kw
Top Buffing Motor	60 Hz 1680 RPM .11kw
Bottom Buffing Motor	60 Hz 1680 RPM .11kw
Sound Rating	80 dB





Technical Info	CBC Flex	CBC.E	CBC.MR	CBC/2.MR	CBC.T	CBC.TPM	CBC.PCR
Eletrical specs	1 Phase 110V 550W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 110V 1500W 60Hz	1 Phase 220V 60Hz 30A	1 Phase 220V 60Hz 30A	1 Phase 220V 60Hz 30A
Feeder Speed	0-19 ft/min	0-18 ft/min	0-26 ft/min	0-26 ft/min	0-16ft/min	21ft/min	18ft/min
Edgebanding Thickness	0.4 – 1mm	0.4 – 2mm	0.4 – 2mm	0.3 – 2mm	0.4 – 3mm	0.4 – 2mm	0.4 – 3mm
Glue Temperature	130° to 180° C	130° to 180° C	130° to 180° C	130° to 180° C	180° to 210° C	180° to 210° C	180° to 210° C
Glue Pot Type	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	Low Temp. Granulated Hot-Melt EVA	High Temp. Granulated Hot-Melt EVA	Granulated Hot-Melt EVA	Granulated Hot-Melt EVA / PUR
Workarea	-	39 3/8" x 15 3/4"	101 3/4" x 15 3/4"	101 3/4" x 15 3/4"	78 3/4" x 10 2/5"	93 1/2" x 41"	119"x40"
Max Edgebanding Height	1/2" to 1 7/8"	3"	3"	3"	2"	1"	2"
Panel Thickness	1/2" to 1 7/8"	3"	3"	3"	12-45mm	10-45mm	8-50mm
Weight	21 Lbs	114 Lbs	242.5 Lbs	330 lbs	1025 Lbs	1191 Lbs	1411 Lbs
Machine Dimension	11" x 14" x 13 1/2"	47" x 31" x 42"	101 3/4" x 35 1/2 x 43"	(101 3/4") 58" x 43" x 43"	112" x 63" x 51"	93. 1/2" x 41" x 53"	119" x 41" x 49"
End Trim	-	Manual	Manual	Manual	Pneumatic	Pneumatic	Pneumatic
