MAKSIWA CBC/2.MR Edgebander
Sale price$4,299.00
Choose options
MAKSIWA CBC/2.MR Edgebander
Sale price$4,299.00

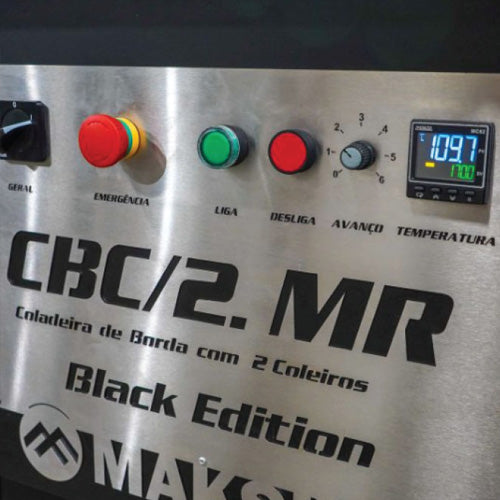

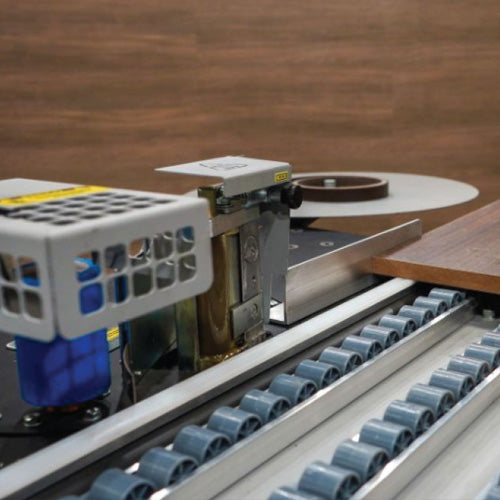

MAKSIWA CBC/2.MR EDGEBANDER
Cabinet edgebander with Dual Glue Pot is loaded with an extension table and 2 interchangeable glue pots, MAKSIWA’s CBC/2.MR Cabinet Edgebander works with the most commonly used edge tape materials such as Melamine/PVC/ABS/PP/VEENER non-fleeced.
With Dual Glue Pot

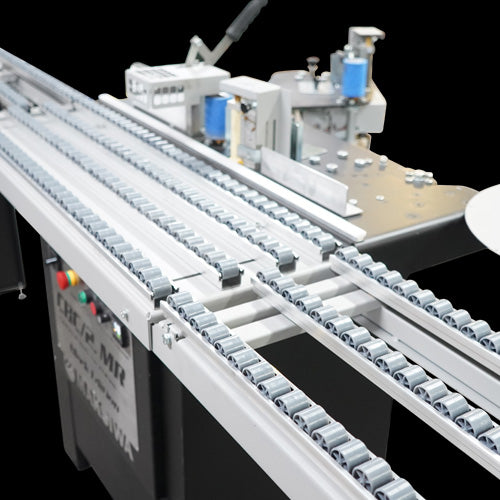

WORK AREA
Whenever opened the extension tables will give you 3x the regular work area of the machine.

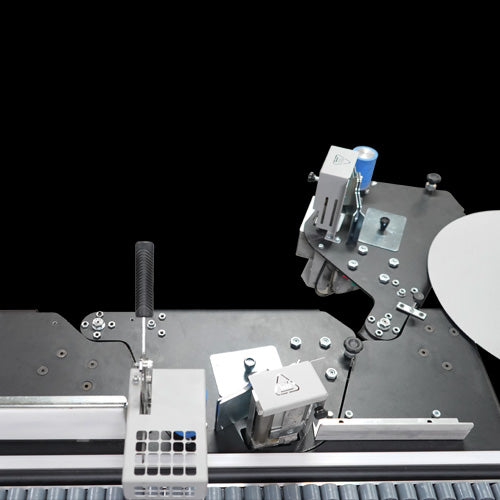

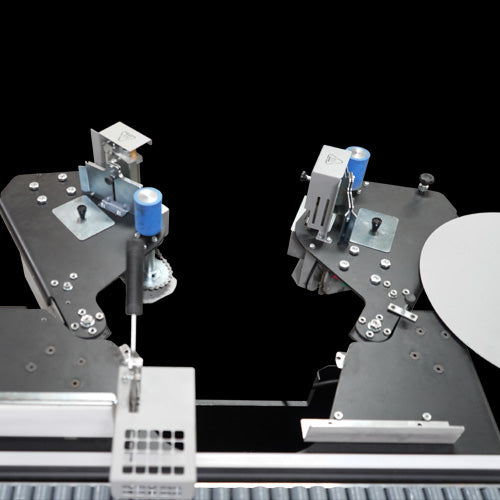

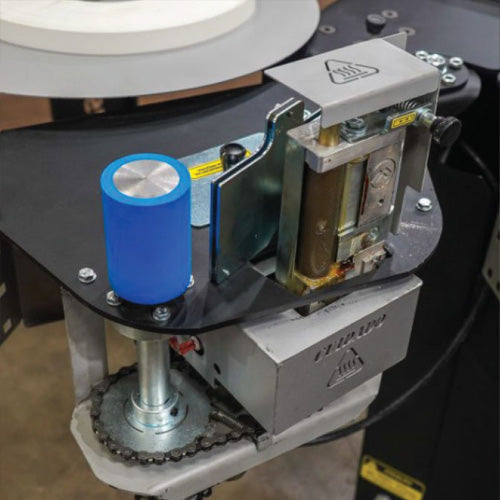

DUAL GLUE POT
The double glue pot is activated by sensors, that means that the machine will automatically detect the glue pot that is in working position.
Manual
The Glue Recomendation
Technical Information |
CBC/2.MR |
|---|---|
| Eletrical specs | 1 Phase 110V 1500W 60Hz |
| Dual Motor Specs | 24 V 10 AMPS |
| Manual Feeding speed | 0-26 FT/MIN |
| Max Edgebanding Height | 3" |
| Edgebanding coil Support Diameter | 19 1/2" |
| Edgebanding thickness | 0.4 - 2 MM |
| Edgebanding Material | Melamine /PVC/ABS/PP/ VEENER non-fleeced |
| Glue Pot Capacity | 1.5 Lbs |
| Recommend Glue Temperature Range | 130 - 180°C |
| Glue Pot Tape | Granulated Hot-Melt |
| (Extensions open) Machine dimensions (LxWxH) | (101 3/4") 58" x 43" x 43" |
| Shipping Dimensions (LxWxH) | 47 x 30 x 50 |
| Weight | 330 lbs |
Technical Info |
CBC Flex |
CBC.E |
CBC.MR |
CBC/2.MR |
CBC.T |
CBC.TPM |
CBC.PCR |
|---|---|---|---|---|---|---|---|
| Eletrical specs | 1 Phase 110V 550W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 110V 1500W 60Hz | 1 Phase 220V 60Hz 30A | 1 Phase 220V 60Hz 30A | 1 Phase 220V 60Hz 30A |
| Feeder Speed | 0-19 ft/min | 0-18 ft/min | 0-26 ft/min | 0-26 ft/min | 0-16ft/min | 21ft/min | 18ft/min |
| Edgebanding Thickness | 0.4 – 1mm | 0.4 – 2mm | 0.4 – 2mm | 0.3 – 2mm | 0.4 – 3mm | 0.4 – 2mm | 0.4 – 3mm |
| Glue Temperature | 130° to 180° C | 130° to 180° C | 130° to 180° C | 130° to 180° C | 180° to 210° C | 180° to 210° C | 180° to 210° C |
| Glue Pot Type | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | Low Temp. Granulated Hot-Melt EVA | High Temp. Granulated Hot-Melt EVA | Granulated Hot-Melt EVA | Granulated Hot-Melt EVA / PUR |
| Workarea | - | 39 3/8" x 15 3/4" | 101 3/4" x 15 3/4" | 101 3/4" x 15 3/4" | 78 3/4" x 10 2/5" | 93 1/2" x 41" | 119"x40" |
| Max Edgebanding Height | 1/2" to 1 7/8" | 3" | 3" | 3" | 2" | 1" | 2" |
| Panel Thickness | 1/2" to 1 7/8" | 3" | 3" | 3" | 12-45mm | 10-45mm | 8-50mm |
| Weight | 21 Lbs | 114 Lbs | 242.5 Lbs | 330 lbs | 1025 Lbs | 1191 Lbs | 1411 Lbs |
| Machine Dimension | 11" x 14" x 13 1/2" | 47" x 31" x 42" | 101 3/4" x 35 1/2 x 43" | (101 3/4") 58" x 43" x 43" | 112" x 63" x 51" | 93. 1/2" x 41" x 53" | 119" x 41" x 49" |
| End Trim | - | Manual | Manual | Manual | Pneumatic | Pneumatic | Pneumatic |
