MAKSIWA BMS.1600.IR SLIDING PANEL SAW
Sale price$5,845.00
MAKSIWA BMS.1600.IR SLIDING PANEL SAW

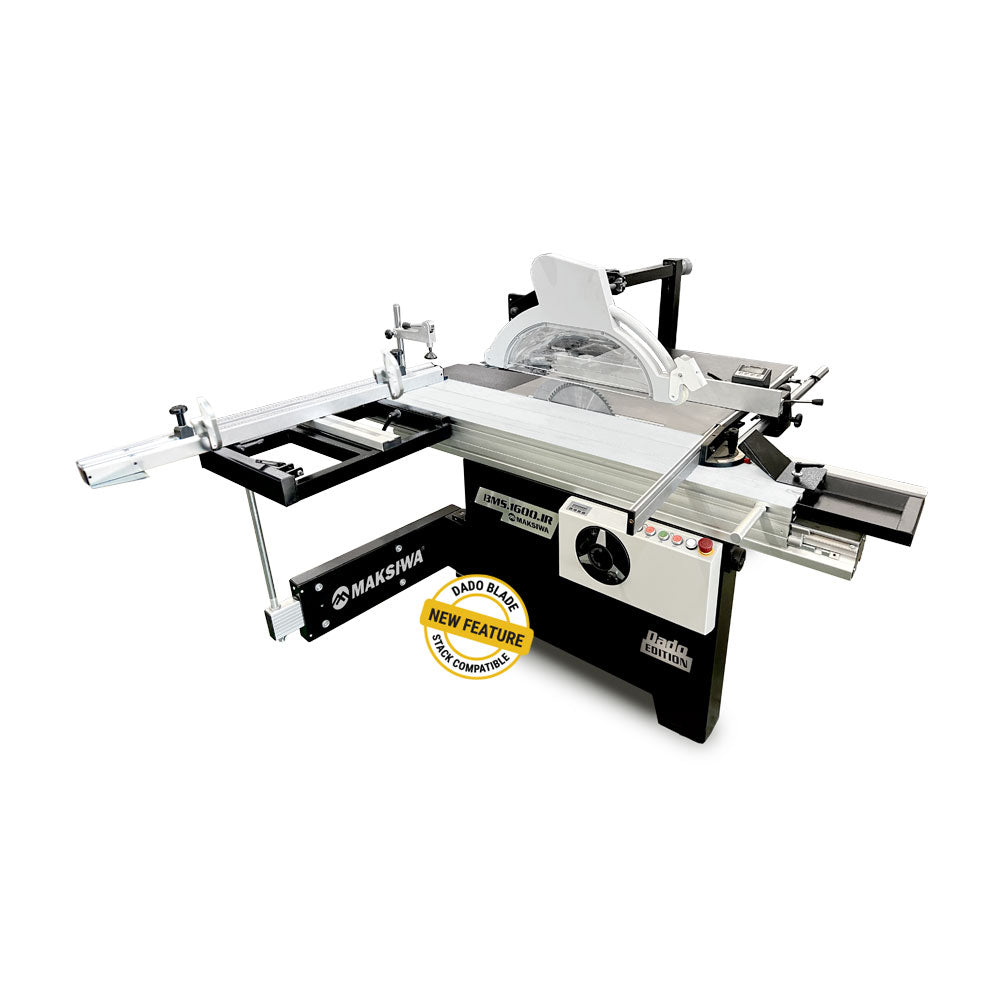

Maksiwa proudly introduces the BMS.1600.IR Dado Edition, an upgraded version of our popular sliding panel saw, now enhanced with dado blade stack compatibility. Designed for precision, power, and efficiency, this compact yet high-performance machine is perfect for shops that demand versatile cutting capabilities without sacrificing space.
With the ability to support dado stacks up to 1-1/4″ using an 8″ blade, the BMS.1600.IR Dado Edition ensures chip-free precision for joinery and cabinetmaking applications. Plus, quick blade changes between dado and standard blades streamline workflow, maximizing productivity.
Experience the next level of cutting flexibility—upgrade to the BMS.1600.IR Dado Edition today!
FREE VIDEO CONFERENCE CALL INSTALLATION
FREE VIDEO CONFERENCE CALL TRAINING SESSION
Dimensions
Technical Information
Info |
BMS.1600.IR |
|---|---|
| Main Motor | 5 HP 4000 RPM 3.7 Kw |
| Max Blade Diameter | 12" | 305mm |
| Main Blade Arbor | 30mm |
| Main Blade Max Cutting Height at 90º | 3 1/2" |
| Main Blade Max Cutting Height at 45º | 2 1/2" |
| Dado Width Capacity | 3/4" |
| Max Dado Blade Diameter | 8" |
| Dado Blade Arbor | 1 3/16" | 30mm |
| Scoring Motor | 1 HP 8000 RPM .74Kw |
| Scoring Motor Blade | 4 3/4" | 120mm |
| Scoring Blade Arbor | 25/32" | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 35 1/2" | 900mm |
| Crosscut Capacity | 63" |
| Crosscut fence max. (Closed/Open) | 48" / 80" |
| Machine Working Dimension (LxWxH) | 79" x 115" x 66" |
| Sliding Table Dimension | 63" x 12" |
| Cast Iron Table dimension (LxWxH) | 32 1/2" x 21" x 35 1/2" |
| Max Tilt | 45º |

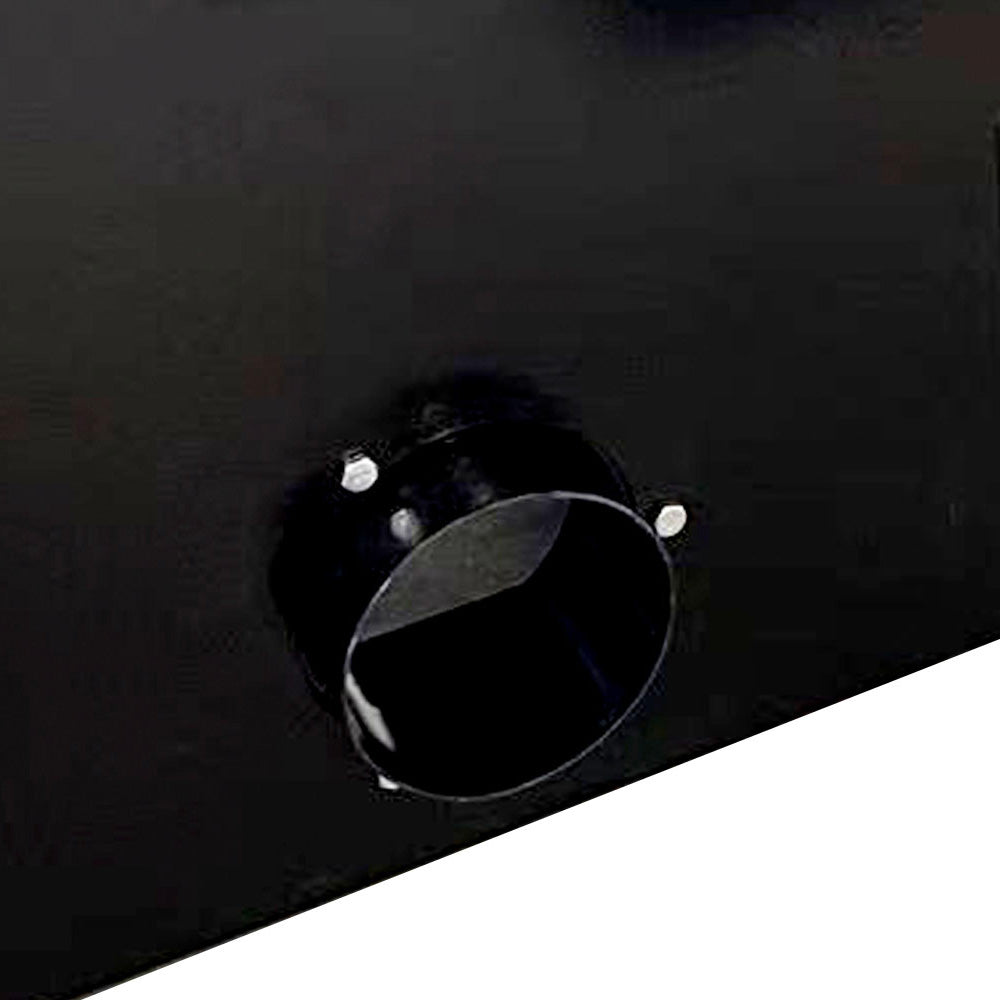

| Dust Collection Port | 4" |
| Electrical Specs | 1 PH 220V 30 Amps 60Hzs |
| Weight | 1000 lbs |
Technical Info |
BMS.1600.IR |
BMS.3200.IR |
BMT.3200.IR |
BMP.3200.IR |
BMD.3200.IR |
|---|---|---|---|---|---|
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years |
| Digital Angle Display | Yes | Yes | Yes | Yes | Yes / CNC |
| Eye Level Control Panel | No | No | No | Yes | Yes / Touch Screen |

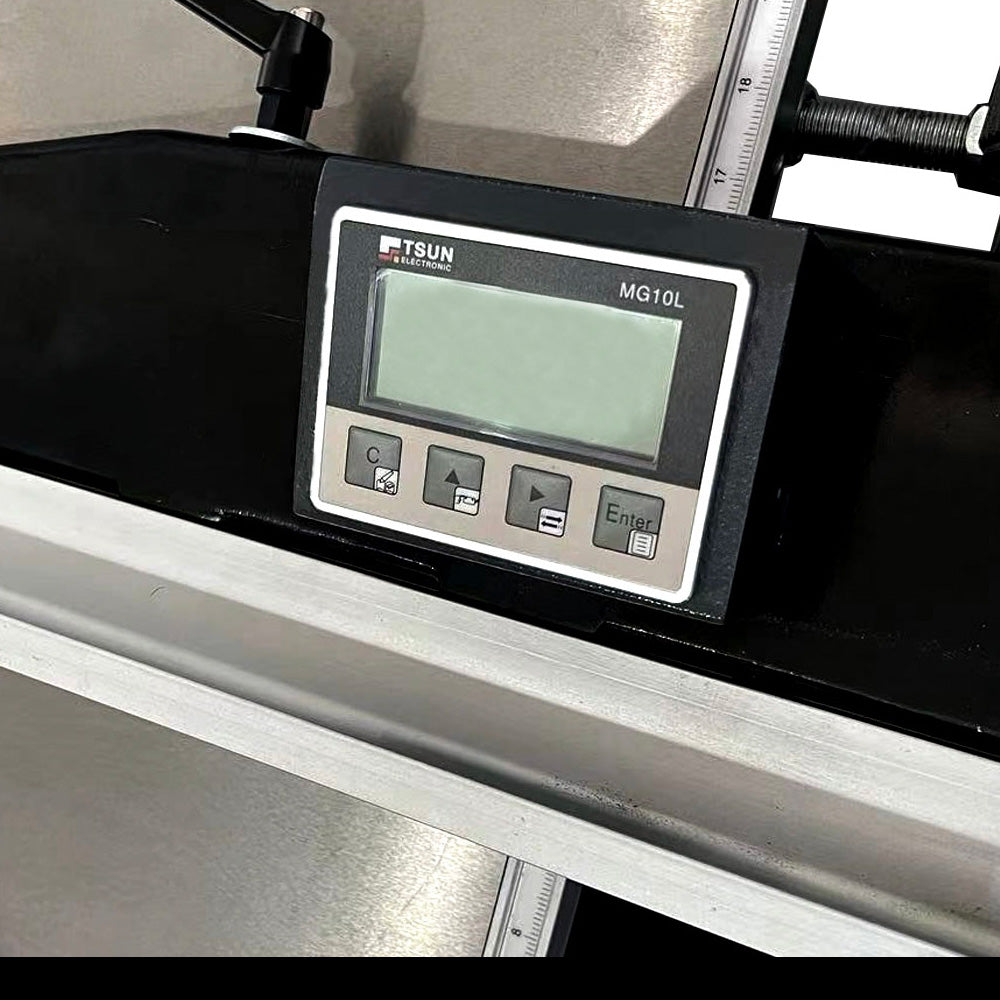

| Digital Fence Readout | Yes | No | Yes | Yes | Yes/ CNC |
| Rip Fence Micro Adjustment | Yes | Yes | Yes | Yes | Yes/ CNC |
| Main Motor | 5HP 4000 RPM 3.7 Kw | 5HP 4000 RPM 3.7 Kw | 5HP 4000 RPM 3.7 Kw | 7.5 HP 4000 RPM 5.5 Kw | 10 HP 7.5 Kw RPM 3,000/4,000/5,000 |
| Max Blade Diameter | 12" | 305 mm | 12" | 305 mm | 12" | 305 mm | 14" | 355 mm | 14" | 355 mm |
| Main Blade Arbor | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Main Blade Max Cutting Height at 90º | 3 1/2" | 90mm | 3 1/2" | 90mm | 3 1/2" | 90mm | 4" | 101 mm | 4" | 101 mm |
| Main Blade Cutting Height at 45º | 2 1/8" | 53 mm | 2 1/8" | 53 mm | 2 7/16" | 63 mm | 2 3/4" | 70mm | 2 3/4" | 70mm |
| Scoring Motor | 1 HP 8000 RPM .74 Kw | 1 HP 8000 RPM .74 Kw | 3/4 HP 8000 RPM .55 Kw | 3/4 HP 8000 RPM .55 Kw | 1 HP 8000 RPM .55 Kw |
| Scoring Motor Blade | 4 3/4" - 120 mm | 4 3/4" - 120 mm | 4 3/4" - 120 mm | 4 3/4" - 120 mm | 4 3/4" - 120 mm |
| Scoring Blade Arbor | 25/32" | 20mm | 25/32" | 20mm | 25/32" | 20mm | 25/32" | 20mm | 25/32" | 20mm |
| Scoring Blade Type | Conical | Conical | Conical | Conical | Conical |
| Max Ripping Capacity | 35 1/2" | 51" | 1300 mm | 51" | 1300 mm | 51" | 1300 mm | 51" | 1300 mm |
| Crosscut Capacity | 63" | 1600mm | 126" | 3200 mm | 126" | 3200 mm | 126" | 3200 mm | 126" | 3200 mm |
| Crosscut Fence Capacity Closed / Open | 48" | 80" | 74 3/4" | 108" | 78" | 120" | 78" | 120" | 78" | 120" |
| Machine Working Dimensions (LxWXH) | 79" x 115" x 66" | 126" x 137" x 52" | 132" x 137" x 52" | 132" x 137" x 75" | 132" x 137" x 75" |
| Cast Iron Table Dimension (LxWxH) | 32 1/2" x 21" x 35 1/2" | 31 1/2" x 21" x 34 3/4" | 35" x 21" x 34" | 35" x 21" x 34" | 35" x 21" x 34" |
| Sliding Table Dimension (LxW) | 63" x 12" | 126" x 14 3/4" | 126" x 14" | 126" x 14" | 126" x 14" |
| Dust Collection Port (2) | 4" | 4" | 4" | 4" | 4" |
| Minimum Dust Collection Requirement | 1000 CFM | 1000 CFM | 1000 CFM | 1000 CFM | 1000 CFM |
| Electrical Specs | 1 PH 220V 30 Amps 60 Hz | 1 PH 220V 22 Amps 60 Hz
3 PH 220V 11 Amps 60 Hz |
1 PH 220V 30 Amps 60 Hz | 3 Phase 220V 30 Amps 60 Hz | 3 Phase 220V 40 Amps 60 Hz |
| Main Body Crate Dimension (LxW XH) | 31 1/2" x 21" x 32" | 88" x 48" x 43" | 83" x 45" x 45" | 83" x 45" x 45" | 83" x 45" x 45" |
| Main Body Crate Weight | 1000 lbs | 1257 lbs | 1254 Lbs | 1470 lbs | 1470 lbs |
| Sliding Table Crate Dimensions (LxWxH) | 63" X 12" | 140" x 19" x 8 1/2" | 133" x 18" x 15" | 133" x 18" x 15" | 133" x 18" x 15" |
| Sliding Table Crate Weight | 282" | 274" | 274" | 274" | |
| Sliding Table Width | 14 3/4" | 14 3/4" | 14" | 14" | 14" |
| Sliding Table Mechanism | Roller Bearings | Roller Bearings | Roller Bearings | Roller Bearings | Roller Bearings |
