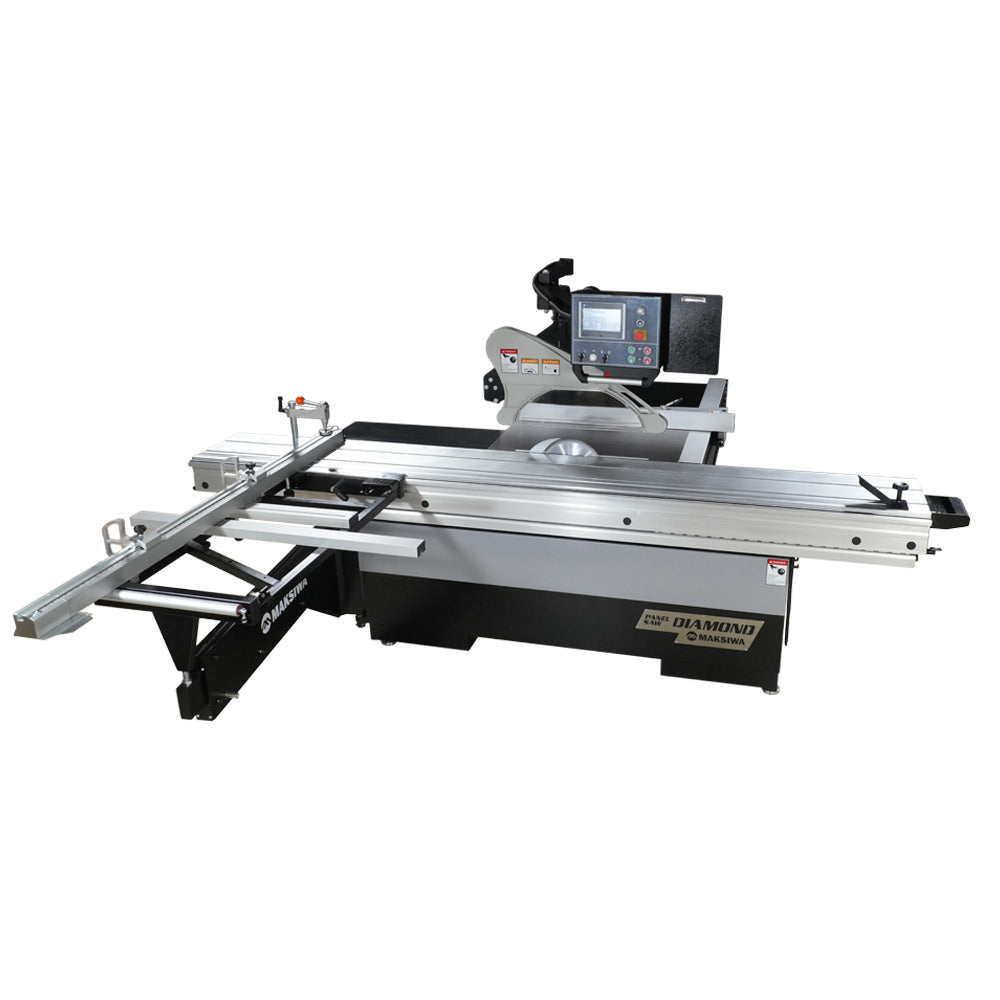

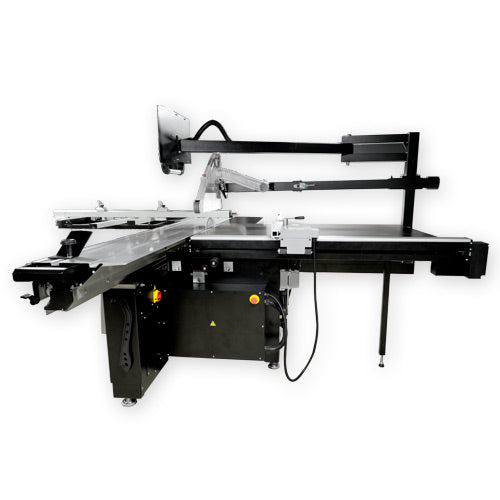

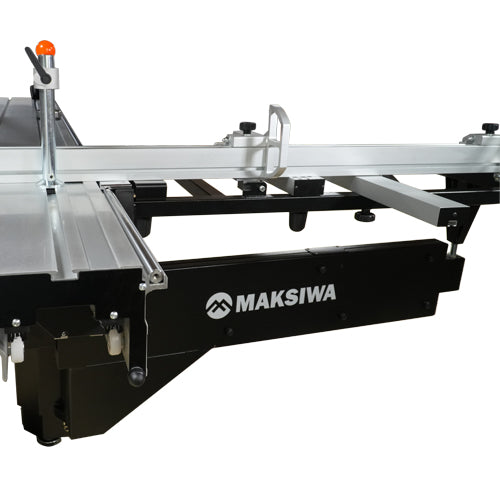

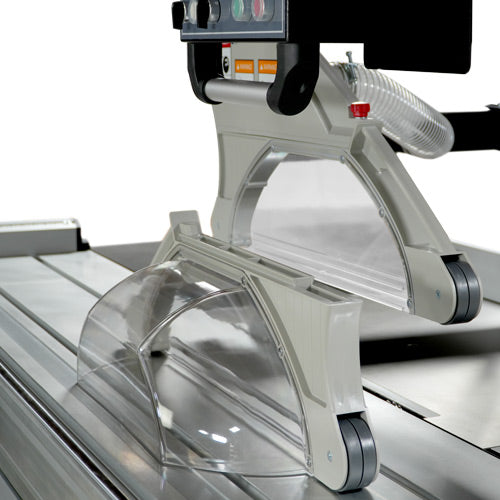

MAKSIWA BMD.3200.IR SLIDING PANEL SAW
The BMD.3200.IR from Maksiwa is a high-performance sliding panel saw designed for woodworking professionals who demand precision and efficiency. Featuring a powerful 10-horsepower motor, advanced CNC-controlled rip fence, and an intuitive touchscreen interface, this machine delivers exceptional accuracy and control for a variety of cuts.
Engineered with a durable, industrial-grade frame, the BMD.3200.IR ensures long-lasting stability and reliability, while integrated safety features and a built-in dust collection system create a cleaner, safer work environment. Whether you’re handling large panels or detailed cuts, this versatile saw excels in all applications. Plus, with a two-year warranty and responsive US-based customer support, Maksiwa provides peace of mind for your investment.
Perfect for cabinetmakers, furniture manufacturers, and custom woodworkers, the BMD.3200.IR is designed to meet the high demands of modern production environments.
FREE VIDEO CONFERENCE CALL INSTALLATION
FREE VIDEO CONFERENCE CALL TRAINING SESSION
Dimensions
Technical Information
Technical Information |
BMD.3200.IR |
|---|---|
| Main Motor | 10 HP/ 7.3 Kw |
| Main Blade Speed | 3,000/4,000/5,000 RPM |
| Max Blade Diameter | 14" | 355mm |
| Main Blade Arbor | 1 3/16" | 30mm |
| Main Blade Max cutting Height at 90° | 4" | 101 mm |
| Main Blade Cutting Height at 45° | 2 3/4" | 70mm |
| Scoring Motor | 3/4 HP / 8000 RPM .75 kw |
| Scoring Motor Blade | 4 3/4" | 12mm |
| Scoring Blade Arbor | 25/32" | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51" | 1295mm |
| Crosscut Capacity | 126" | 3200 mm |
| Crosscut Fence Capacity Closed/Open | 78" / 120" | 1981mm / 3048 mm |
| Machine Working Dimensions (LxWxH) | 132" x 137" x 75" | 3352 x 3479 x 1905 mm |
| Cast Iron Table Dimension (LxWxH) | 35" x 21" x 34" | 896 X 548 X 864 mm |
| Sliding Table Dimension (LxW) | 126" x 14 " | 3200 x 358 mm |

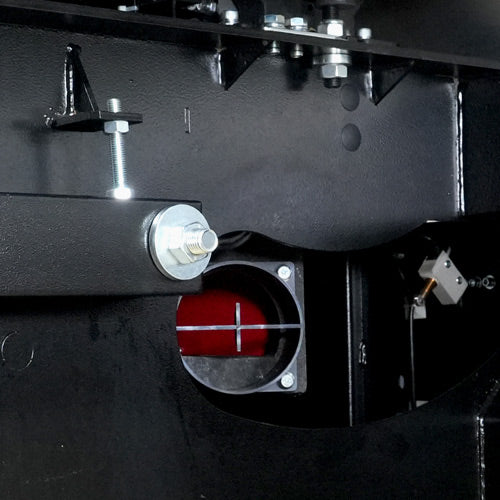

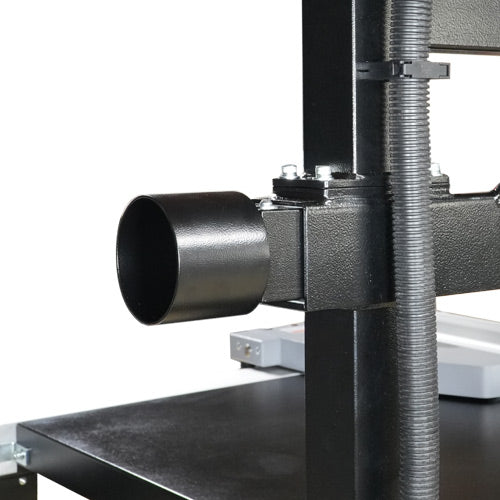

| Dust Collection Port (2) | 4" | 100mm |
| Minimum Dust Collection Requirements | 1000 CFM | 28m/min |
| Electrical Specs | 3 Phase 220V 40 Amps 60 Hz |
| Main Body Crate Dimensions (LxWxH) | 83" x 45" x 45" | 2108x 1143 x 1143 mm |
| Main Body Crate Weight Net/Gross | 1470 LBS | 667 KGS |
| Sliding Table Crate Dimensions (LxWxH) | 133" x 18" x 15" | 3378 x 457 x 381 mm |
| Sliding Table Crate Weight Net/Gross | 274 LBS | 124 KGS |
Technical Info |
BMS.1600.IR |
BMS.3200.IR |
BMT.3200.IR |
BMP.3200.IR |
BMD.3200.IR |
|---|---|---|---|---|---|
| Warranty | 2 Years | 2 Years | 2 Years | 2 Years | 2 Years |
| Digital Angle Display | Yes | Yes | Yes | Yes | Yes / CNC |

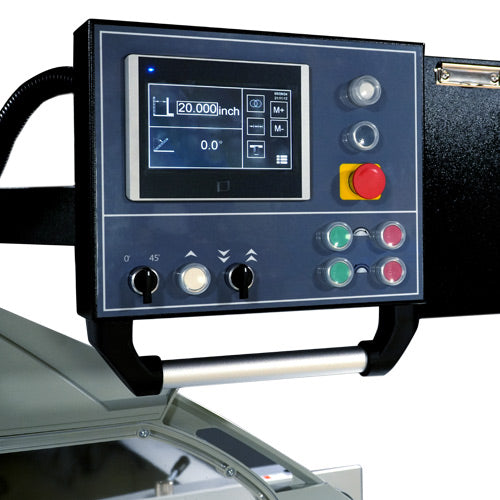

| Eye Level Control Panel | No | No | No | Yes | Yes / Touch Screen |
| Digital Fence Readout | Yes | No | Yes | Yes | Yes/ CNC |
| Rip Fence Micro Adjustment | Yes | Yes | Yes | Yes | Yes/ CNC |
| Main Motor | 5HP 4000 RPM 3.7 Kw | 5HP 4000 RPM 3.7 Kw | 5HP 4000 RPM 3.7 Kw | 7.5 HP 4000 RPM 5.5 Kw | 10 HP 7.5 Kw RPM 3,000/4,000/5,000 |
| Max Blade Diameter | 12" | 305 mm | 12" | 305 mm | 12" | 305 mm | 14" | 355 mm | 14" | 355 mm |
| Main Blade Arbor | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Main Blade Max Cutting Height at 90º | 3 1/2" | 90mm | 3 1/2" | 90mm | 3 1/2" | 90mm | 4" | 101 mm | 4" | 101 mm |
| Main Blade Cutting Height at 45º | 2 1/8" | 53 mm | 2 1/8" | 53 mm | 2 7/16" | 63 mm | 2 3/4" | 70mm | 2 3/4" | 70mm |
| Scoring Motor | 1 HP 8000 RPM .74 Kw | 1 HP 8000 RPM .74 Kw | 3/4 HP 8000 RPM .55 Kw | 3/4 HP 8000 RPM .55 Kw | 1 HP 8000 RPM .55 Kw |
| Scoring Motor Blade | 4 3/4" - 120 mm | 4 3/4" - 120 mm | 4 3/4" - 120 mm | 4 3/4" - 120 mm | 4 3/4" - 120 mm |
| Scoring Blade Arbor | 25/32" | 20mm | 25/32" | 20mm | 25/32" | 20mm | 25/32" | 20mm | 25/32" | 20mm |
| Scoring Blade Type | Conical | Conical | Conical | Conical | Conical |
| Max Ripping Capacity | 35 1/2" | 51" | 1300 mm | 51" | 1300 mm | 51" | 1300 mm | 51" | 1300 mm |
| Crosscut Capacity | 63" | 1600mm | 126" | 3200 mm | 126" | 3200 mm | 126" | 3200 mm | 126" | 3200 mm |
| Crosscut Fence Capacity Closed / Open | 48" | 80" | 74 3/4" | 108" | 78" | 120" | 78" | 120" | 78" | 120" |
| Machine Working Dimensions (LxWXH) | 79" x 115" x 66" | 126" x 137" x 52" | 132" x 137" x 52" | 132" x 137" x 75" | 132" x 137" x 75" |
| Cast Iron Table Dimension (LxWxH) | 32 1/2" x 21" x 35 1/2" | 31 1/2" x 21" x 34 3/4" | 35" x 21" x 34" | 35" x 21" x 34" | 35" x 21" x 34" |
| Sliding Table Dimension (LxW) | 63" x 12" | 126" x 14 3/4" | 126" x 14" | 126" x 14" | 126" x 14" |
| Dust Collection Port (2) | 4" | 4" | 4" | 4" | 4" |
| Minimum Dust Collection Requirement | 1000 CFM | 1000 CFM | 1000 CFM | 1000 CFM | 1000 CFM |
| Electrical Specs | 1 PH 220V 30 Amps 60 Hz | 1 PH 220V 22 Amps 60 Hz
3 PH 220V 11 Amps 60 Hz |
1 PH 220V 30 Amps 60 Hz | 3 Phase 220V 30 Amps 60 Hz | 3 Phase 220V 40 Amps 60 Hz |
| Main Body Crate Dimension (LxW XH) | 31 1/2" x 21" x 32" | 88" x 48" x 43" | 83" x 45" x 45" | 83" x 45" x 45" | 83" x 45" x 45" |
| Main Body Crate Weight | 1000 lbs | 1257 lbs | 1254 Lbs | 1470 lbs | 1470 lbs |
| Sliding Table Crate Dimensions (LxWxH) | 63" X 12" | 140" x 19" x 8 1/2" | 133" x 18" x 15" | 133" x 18" x 15" | 133" x 18" x 15" |
| Sliding Table Crate Weight | 282" | 274" | 274" | 274" | |
| Sliding Table Width | 14 3/4" | 14 3/4" | 14" | 14" | 14" |
| Sliding Table Mechanism | Roller Bearings | Roller Bearings | Roller Bearings | Roller Bearings | Roller Bearings |
