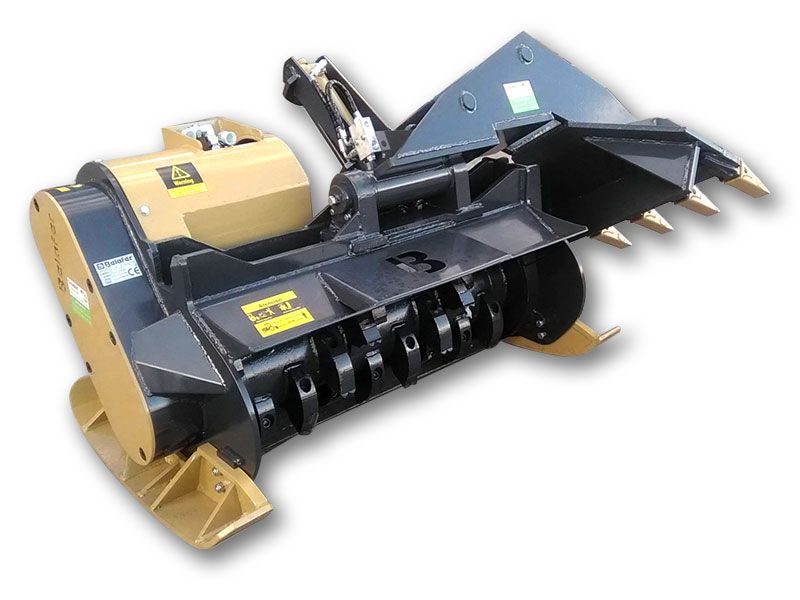

Belafer Tungsten Fixed Hammer CAB FAW Forest Header
*Contact for Shipping Quote*
Choose options
FAW brushcutter head for excavators up to 18TN. BREAKER HEAD from 1.00 to 1.20 m of work. Fixed tungsten hammers and high performance hydraulic equipment. Different hitches and possibility of adapting the ripper in all models. Machine specially and tested for Menzi-Muck and Kaiser backhoes.
Standard:
-SSAB steel plate monocoque chassis. High elastic limit (Hardox).
-Tungsten carbide hammer rotor shaft.
-Support skates on Hardox.
-Piston hydraulic motor. Volvo-Parker.
-Safety valve on the engine.
-Transmission by pulleys and belts.
-Projection-proof front and rear chains.
-Rear opening door.
-Crushing capacity up to ø 30cm.
-Designed for machines up to 18 tons
Description
The FAW fixed hammer forestry head is designed for crushing branches, trees, stumps and tree residues. It is equipped with special hammers with hard metal tips, which are stronger and more durable. The construction of the rotor with perfect electronic balancing allows excellent shredding. The monoblock chassis system together with the skids for height adjustment. Reinforced and its regulation system allows to work in different heights. The opening gate system can be mounted mechanically or hydraulically. The construction is extremely solid and robust. THE MODELS ARE MANUFACTURED IN SSAB MATERIAL OF HIGH RESISTANCE AND ELASTICITY.
Technical features
| Code | Model | Working width | Eng. tipo | Number of hammers | Weight kg | Pressure | Flow |
|---|---|---|---|---|---|---|---|
| 99907231 | CAB-120FAW | 120 cm | A/B | 30 | 900 | 280-320 | 80 L/150 L |
