Culture hammer shredder with hydraulic displacement that allows the machine to be brought closer to the side of the road. In micro-forest areas, the chisel is used to cut down the weeds.
Standard:
-Wear-resistant chassis plate.
-Unidirectional or reversible hydraulic motor.
-Transmitter body and motor casing.
-Transmission by pulleys and belts.
-Hitch for mini-loader.
-Rear adjustment roller.
-Spray-proof front chains.
-Floating hammer rotor.
Description

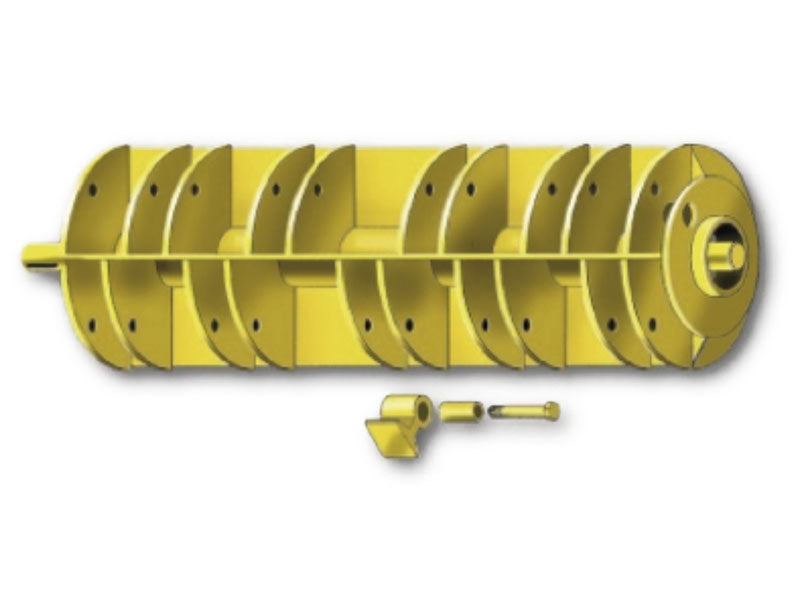

TBMI and TBMI-MARINE brushcutters and crushers are manufactured in 1.80 m working width. They are designed to be coupled to mini-loaders with rubber or mixed chains of between 2.5 and 4 t. Their cutting elements are either knives or hammers. The hammer rotor shaft of the TBMI model is floating, the rotor being manufactured with discs where the hammer oscillates 360º and the crushing capacity of this model is 12 cm. in diameter.
Technical features
| Code | Model | Working width | number of blades / hammers | Weight kg | Pressure | Flow |
|---|---|---|---|---|---|---|
| 99902578 | TBMI | 180 cm. | 56/28 | 600 | 200-350 Bar | 45-110 L |
Options:
-Hydraulic sideshift.
