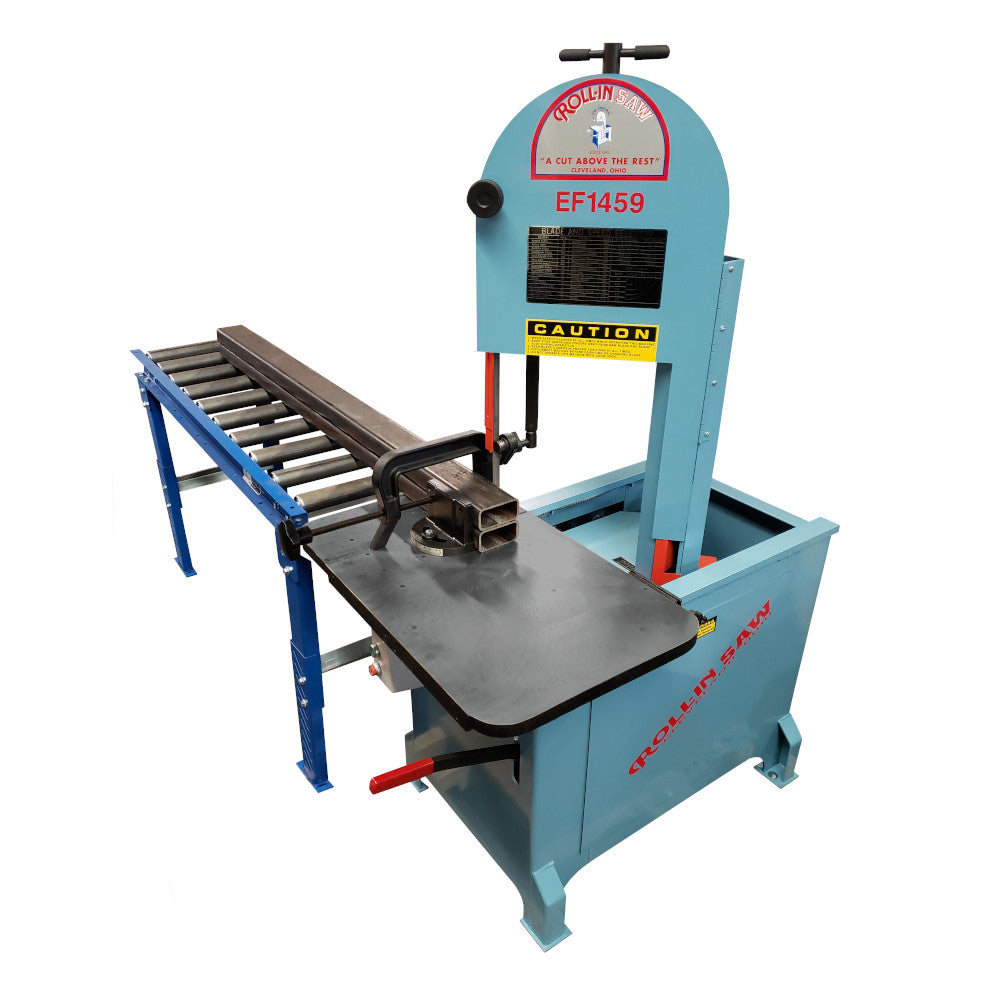

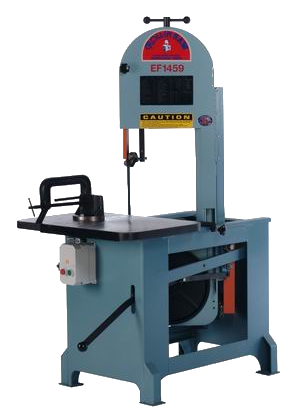

EF1459

“The Original” was the first saw in America to use a patented gravity-feed system that saves time and energy. The success of this product is the bedrock for the reputation Roll-In Saw has earned for manufacturing versatile & durable saws.

The EF1459 is actually a horizontal band saw on a vertical frame. An all-purpose band saw, it handles all metals, plastics, and woods in a wide variety of cuts. It is a fast, accurate cut-off machine that is perfect for notching, slitting, and slotting. A reliable addition to your shop floor or tool room, this band saw doubles as a contour, profile, and rip saw.

Fast & accurate all-purpose saw--easily cutting all metals, plastics, & woods

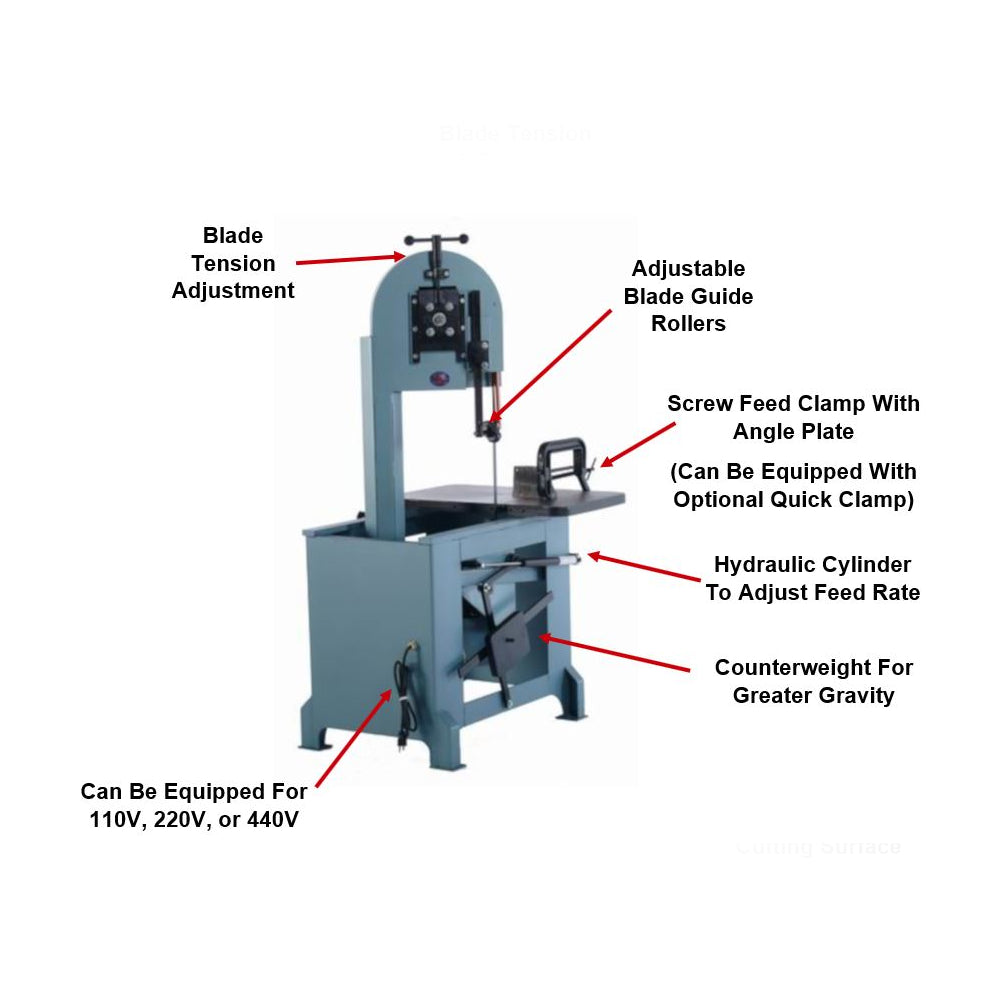

Horizontal band saw on a vertical frame gives users the versatility of both saw styles

• Precision for complex cuts
  - Auto-feed for high volume cutting
• Can Be Equipped For 110V, 220V, or 440V

Feed System Gravity Feed
Blade Travel 9” into work
Cutting Capacity at 90° Round: 8.5" Rectangle: 14.5" x 8.5"
Miter Cut Angle Range 0° - 45° **
Bevel Cut Angle Range N/A
Capacity Under Guides 14 1⁄2”
Throat 8 3⁄4”
Blade Size (Ships With Saw) 3/4” Width x 8/12T x 10' Length .035 thick (bi-metal)
Blade Size (Accepted Widths) 1/4”, 3/8”, 1/2”, 5/8” and 3/4”
Blade Speeds 70, 140, 270 and 525 fpm
Table Precision Ground Cast Iron Table: 18 1⁄2” x 30”
Table Height 30" From Floor (No Casters)
Motor 1 HP, 110/220V, 60-cycle single-phase; 1 HP 220/440V, 60-cycle three-phase

Saw Dimensions 30” Width x 66” Height x 40” Length
Shipping Dimensions 33” Width x 72” Height x 48” Length
Shipping Weight 650 lbs. F.O.B Cleveland, Ohio
